Anyagok:
acél, öntvény, nemvasfémek
Alkalmazás:
idomok és tömör acél vágásához
Milyen gépekhez:
fémmegmunkáló gépek
Jellemzői:
|
Átmérő
(mm) |
Vastagság (mm) | Test vastagsága (mm) | Szeg mensek száma |
Súly
(kg) |
Fogak száma Z | Fogak száma szegmensenként | |||||||
| hang maga sság T = mm | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | |||||
| 250 | 3,5 | 2,8 | 12 | 1 | Z
T |
60
13,1 |
72
10,9 |
96
8,2 |
120
6,5 |
144
5,5 |
|||
| 275 | 3 | 2,2 | 12 | 1,3 | Z
T |
60
14,4 |
72
12 |
96
9 |
120
7,2 |
144
6 |
|||
| 315 | 3,6 | 2,7 | 14 | 1,7 | Z
T |
56
17,7 |
70
14,1 |
84
11,8 |
112
8,8 |
140
7,1 |
168
5,9 |
||
| 360 | 3,6 | 2,8 | 16 | 2,5 | Z
T |
64
17,4 |
80
13,9 |
96
11,6 |
128
8,7 |
160
7 |
192
5,8 |
||
| 370 | 3,6 | 2,8 | 16 | 2,8 | Z
T |
64
18,2 |
80
14,5 |
96
12,1 |
128
9,8 |
160
7,9 |
192
6,5 |
||
| 400 | 4 | 3,2 | 16 | 2,8 | Z
T |
64
19,6 |
80
15,7 |
96
13,1 |
128
9,8 |
160
7,3 |
192
6,1 |
||
| 425 | 4 | 3,2 | 18 | 3,4 | Z
T |
72
18,5 |
90
14,8 |
108
12,4 |
144
9,3 |
180
7,4 |
216
6,1 |
||
| 450 | 4 | 3,3 | 18 | 5 | Z
T |
72
19,6 |
90
15,7 |
108
13,1 |
144
9,8 |
180
7,8 |
|||
| 460 | 4,7 | 3,3 | 18 | 5 | Z
T |
72
20,1 |
90
16 |
108
13,4 |
144
10 |
180
8 |
|||
| 500 | 5 | 3,8 | 18 | 5,8 | Z
T |
72
21,8 |
90
17,4 |
108
14,5 |
144
10,9 |
180
8,7 |
216
8,1 |
||
| 560 | 5 | 3,7 | 18 | 7,5 | Z
T |
90
19,5 |
108
16,3 |
144
12,2 |
180
9,8 |
216
8,1 |
|||
| 630 | 6 | 4 | 20 | 10,8 | Z
T |
60
33 |
80
24,7 |
100
19,8 |
120
16,5 |
160
12,4 |
200
9,9 |
||
| 660 | 6 | 4 | 20 | 11,5 | Z
T |
60
34,5 |
80
25,9 |
100
20,7 |
120
17,3 |
160
13 |
200
10,4 |
240
8,6 |
|
| 710 | 6 | 4,5 | 24 | 13,5 | Z
T |
72
31 |
96
23,2 |
120
18,6 |
144
15,5 |
192
11,6 |
|||
| 760 | 6 | 4,5 | 24 | 16,5 | Z
T |
72
31,1 |
96
24,9 |
120
19,9 |
144
16,6 |
192
12,4 |
240
9,9 |
||
| 800 | 7 | 5 | 24 | 19 | Z
T |
72
34,9 |
96
26,2 |
120
20,9 |
144
17,4 |
192
13,1 |
240
10,5 |
||
| 910 | 7 | 5 | 30 | 27,5 | Z
T |
60
47,6 |
90
31,7 |
120
23,8 |
150
19 |
180
15,9 |
240
11,9 |
||
| 970 | 7,8 | 5,7 | 30 | 32 | Z
T |
120
25,4 |
150
20,3 |
180
16,9 |
240
12,7 |
||||
| 1020 | 8,3 | 6,2 | 30 | 35 | Z
T |
60
53,4 |
90
35,6 |
120
26,7 |
150
21,4 |
180
17,8 |
240
13,3 |
||
| 1120 | 8,5 | 6,5 | 36 | 50 | Z
T |
72
48,8 |
108
32,6 |
144
24,4 |
180
19,5 |
216
16,3 |
|||
| 1250 | 9 | 7 | 36 | 65 | Z
T |
72
54,6 |
108
36,3 |
144
27,3 |
180
21,8 |
216
18,2 |
288
13,6 |
||
| 1320 | 9 | 7 | 36 | 75 | Z
T |
72
57,6 |
108
38,4 |
144
28,8 |
180
23 |
216
19,2 |
288
14,4 |
||
| 1430 | 9,5 | 7 | 36 | 93 | Z
T |
72
62,4 |
108
41,6 |
144
31,2 |
180
24,9 |
216
20,8 |
|||
| 1510 | 10,5 | 8,5 | 36 | 112 | Z
T |
72
65,8 |
108
43,9 |
144
32,9 |
180
26,3 |
216
21,9 |
|||
| 1610 | 10,5 | 8,5 | 40 | 126 | Z
T |
80
63,2 |
120
42,1 |
160
31,6 |
200
25,3 |
240
21 |
|||
| 1870 | 15 | 11 | 42 | 235 | Z
T |
84
69,9 |
126
46,6 |
168
35 |
|||||

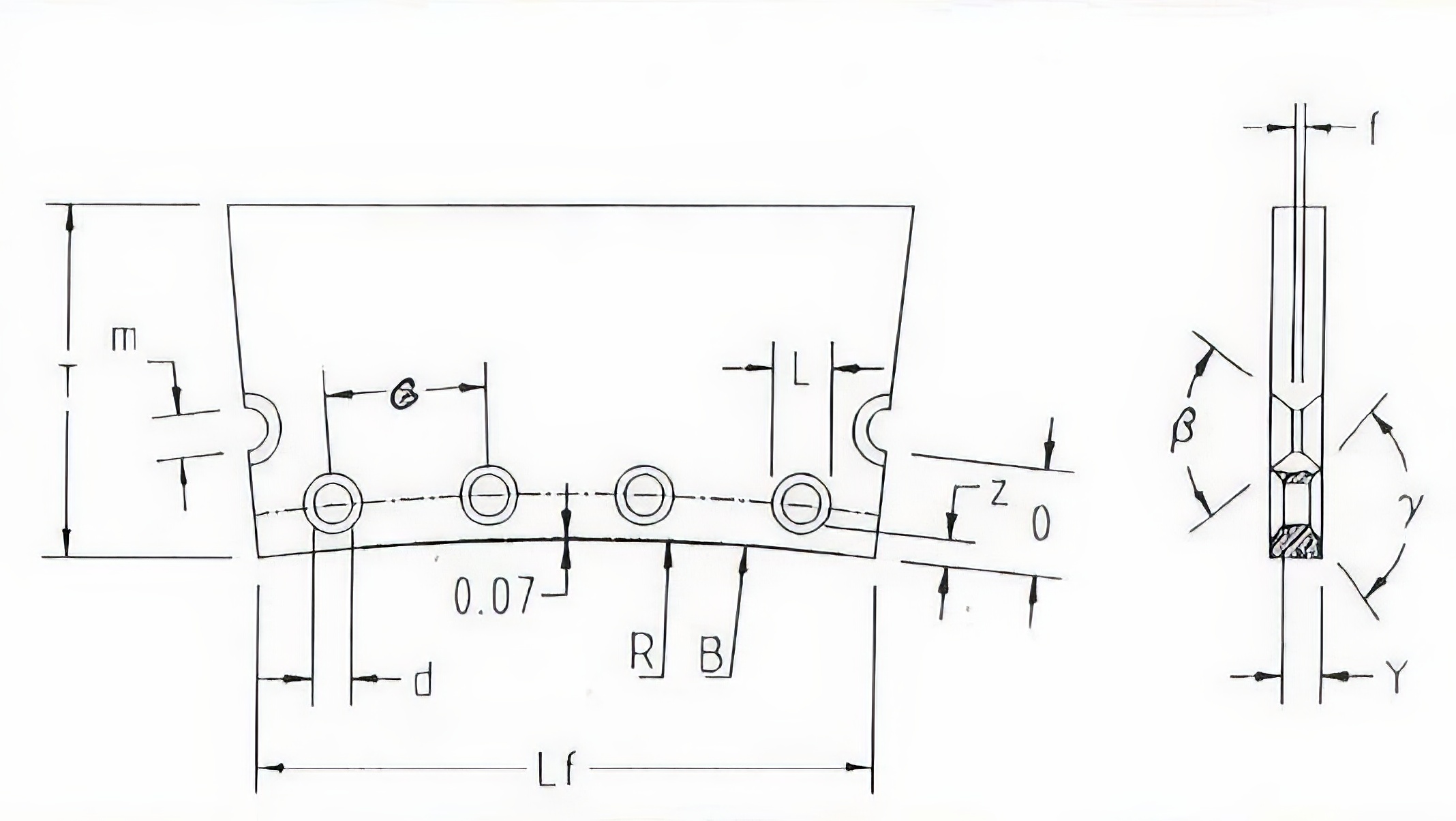

| Ø | s | szegmensek száma | ØB [+0,05][-0,10] | L1 | T [+0,1][-0,1] | R-méret | d [±0,1] | szög γ | furatszám γ | Z [+0,2][-0,0] | Y [±0,1] | m [±0,1] | szög ß | furatszám | furatszám | O [+0,2][-0,0] | f [±0,2] | átmérő ±0,2mm |
| 250.0 | 3.0 | 12.0 | 187.5 | 48.81 | 35.8 | 91.842 | 4.0 | 90.0 | 1.0 | 2.5 | 2.5 | 4.5 | 90.0 | 3.0 | 15.0 | 10.5 | 0.5 | 6.2 |
| 275.0 | 3.0 | 12.0 | 212.5 | 55.28 | 36.2 | 104.333 | 4.0 | 90.0 | 1.0 | 2.75 | 2.5 | 4.5 | 90.0 | 3.0 | 15.0 | 11.0 | 0.5 | 6.2 |
| 275.0 | 4.0 | 12.0 | 212.5 | 55.28 | 36.2 | 104.333 | 4.0 | 90.0 | 1.0 | 2.75 | 3.0 | 4.5 | 90.0 | 3.0 | 15.0 | 11.0 | 0.5 | 7.2 |
| 300.0 | 3.6 | 14.0 | 232.0 | 51.9 | 38.2 | 113.384 | 4.5 | 90.0 | 2.0 | 2.5 | 3.0 | 5.0 | 90.0 | 4.0 | 16.0 | 11.0 | 0.5 | 6.9 |
| 315.0 | 3.6 | 14.0 | 246.0 | 55.02 | 38.9 | 120.378 | 4.5 | 90.0 | 2.0 | 2.75 | 3.0 | 5.0 | 90.0 | 4.0 | 16.0 | 11.75 | 0.5 | 6.9 |
| 340.0 | 3.6 | 16.0 | 276.0 | 54.12 | 36.0 | 134.57 | 4.5 | 90.0 | 2.0 | 2.5 | 3.05 | 5.0 | 90.0 | 4.0 | 16.0 | 11.75 | 0.5 | 6.8 |
| 360.0 | 3.6 | 16.0 | 290.0 | 58.86 | 39.1 | 141.565 | 4.5 | 90.0 | 2.0 | 3.25 | 3.0 | 5.0 | 90.0 | 4.0 | 16.0 | 12.75 | 0.5 | 6.9 |
| 370.0 | 3.6 | 16.0 | 300.0 | 58.81 | 39.2 | 148.56 | 4.5 | 90.0 | 2.0 | 3.25 | 3.0 | 5.0 | 90.0 | 4.0 | 16.0 | 12.75 | 0.5 | 6.9 |
| 400.0 | 4.0 | 16.0 | 320.0 | 62.71 | 44.4 | 158.552 | 4.5 | 90.0 | 2.0 | 3.0 | 3.35 | 5.0 | 90.0 | 4.0 | 16.0 | 12.75 | 0.5 | 7.0 |
| 400.0 | 5.0 | 16.0 | 320.0 | 62.71 | 44.4 | 158.552 | 4.5 | 90.0 | 3.0 | 3.0 | 3.85 | 5.5 | 75.0 | 6.0 | 17.0 | 12.5 | 0.5 | 8.0 |
| 410.0 | 5.0 | 18.0 | 330.0 | 57.58 | 43.8 | 160.647 | 4.5 | 90.0 | 3.0 | 3.75 | 3.85 | 5.5 | 75.0 | 6.0 | 17.0 | 13.25 | 0.5 | 8.0 |
| 425.0 | 4.0 | 18.0 | 340.0 | 59.32 | 46.4 | 165.642 | 4.5 | 90.0 | 2.0 | 2.5 | 3.35 | 5.0 | 90.0 | 4.0 | 16.0 | 11.0 | 0.5 | 7.0 |
| 450.0 | 4.0 | 18.0 | 387.0 | 64.01 | 45.6 | 179.128 | 4.5 | 90.0 | 2.0 | 3.5 | 3.35 | 5.0 | 90.0 | 4.0 | 16.0 | 12.5 | 0.5 | 7.0 |
| 480.0 | 5.0 | 18.0 | 380.0 | 68.27 | 44.2 | 185.624 | 4.5 | 90.0 | 3.0 | 3.75 | 3.85 | 5.5 | 75.0 | 6.0 | 17.0 | 13.5 | 0.5 | 8.0 |
| 510.0 | 5.7 | 18.0 | 420.0 | 73.21 | 49.5 | 205.609 | 4.5 | 90.0 | 3.0 | 4.75 | 4.35 | 5.5 | 75.0 | 6.0 | 17.0 | 15.5 | 1.0 | 8.4 |
| 560.0 | 5.0 | 18.0 | 478.0 | 83.28 | 45.9 | 234.591 | 4.5 | 90.0 | 3.0 | 3.0 | 4.0 | 5.5 | 75.0 | 6.0 | 17.0 | 12.25 | 1.0 | 7.7 |
| 630.0 | 5.0 | 20.0 | 540.0 | 84.75 | 49.6 | 284.552 | 4.5 | 90.0 | 3.0 | 4.75 | 4.1 | 5.5 | 75.0 | 6.0 | 17.0 | 15.5 | 1.0 | 7.5 |
| 630.0 | 6.0 | 20.0 | 540.0 | 84.75 | 49.6 | 284.552 | 4.5 | 90.0 | 3.0 | 4.75 | 4.6 | 5.5 | 75.0 | 6.0 | 17.0 | 15.5 | 1.0 | 8.5 |
| 680.0 | 5.0 | 20.0 | 572.0 | 89.78 | 48.8 | 280.543 | 4.5 | 90.0 | 3.0 | 3.0 | 4.1 | 5.5 | 75.0 | 6.0 | 17.0 | 12.5 | 1.0 | 7.5 |
| 680.0 | 6.0 | 20.0 | 570.0 | 89.45 | 49.8 | 279.544 | 4.5 | 90.0 | 3.0 | 4.75 | 4.6 | 5.5 | 75.0 | 6.0 | 17.0 | 15.5 | 1.0 | 8.5 |
| 710.0 | 6.2 | 24.0 | 620.0 | 81.21 | 49.0 | 302.175 | 5.0 | 75.0 | 5.0 | 4.5 | 4.9 | 6.0 | 75.0 | 7.0 | 18.0 | 15.25 | 1.0 | 7.9 |
| 760.0 | 6.3 | 24.0 | 670.0 | 87.73 | 49.2 | 327.153 | 5.0 | 75.0 | 5.0 | 4.0 | 4.95 | 6.0 | 75.0 | 7.0 | 18.0 | 15.25 | 1.0 | 8.0 |
| 810.0 | 6.8 | 24.0 | 710.0 | 92.95 | 54.4 | 347.138 | 5.0 | 75.0 | 5.0 | 5.5 | 5.2 | 6.0 | 75.0 | 7.0 | 18.0 | 19.25 | 1.0 | 8.4 |
| 810.0 | 6.5 | 24.0 | 710.0 | 92.95 | 54.4 | 347.138 | 5.5 | 75.0 | 8.0 | 4.05 | 5.05 | 6.5 | 75.0 | 8.0 | 19.0 | 14.0 | 2.0 | 8.6 |
| 860.0 | 6.5 | 24.0 | 760.0 | 99.48 | 54.8 | 372.123 | 5.0 | 75.0 | 5.0 | 4.0 | 5.05 | 6.0 | 75.0 | 7.0 | 18.0 | 15.25 | 1.0 | 8.1 |
| 910.0 | 7.0 | 30.0 | 812.0 | 85.16 | 52.5 | 393.794 | 5.0 | 75.0 | 5.0 | 3.5 | 5.4 | 6.0 | 75.0 | 7.0 | 18.0 | 14.5 | 1.0 | 8.4 |
| 820.0 | 7.0 | 30.0 | 812.0 | 85.16 | 57.5 | 383.784 | 5.0 | 75.0 | 5.0 | 3.5 | 5.4 | 6.0 | 75.0 | 7.0 | 18.0 | 19.5 | 1.0 | 8.4 |
| 960.0 | 7.0 | 30.0 | 860.0 | 90.17 | 53.7 | 417.788 | 5.0 | 75.0 | 5.0 | 4.0 | 5.4 | 6.0 | 75.0 | 7.0 | 18.0 | 15.0 | 1.0 | 8.4 |
| 1010.0 | 8.0 | 30.0 | 910.0 | 95.4 | 53.8 | 442.741 | 6.0 | 75.0 | 7.0 | 4.0 | 6.05 | 6.5 | 75.0 | 8.0 | 19.0 | 16.0 | 1.5 | 9.9 |
| 1020.0 | 8.3 | 30.0 | 914.0 | 95.82 | 56.8 | 444.74 | 6.0 | 75.0 | 7.0 | 6.2 | 6.3 | 6.5 | 75.0 | 8.0 | 19.0 | 20.75 | 2.5 | 10.0 |
| 1110.0 | 8.0 | 36.0 | 1010.0 | 88.31 | 53.2 | 487.476 | 6.0 | 75.0 | 7.0 | 4.0 | 6.05 | 6.5 | 75.0 | 8.0 | 19.0 | 16.0 | 1.5 | 9.9 |
| 1210.0 | 9.0 | 36.0 | 1090.0 | 95.28 | 63.4 | 527.419 | 6.0 | 75.0 | 7.0 | 5.0 | 7.1 | 6.5 | 75.0 | 8.0 | 19.0 | 19.5 | 1.5 | 9.8 |
| 1250.0 | 9.0 | 36.0 | 1135.0 | 99.2 | 61.0 | 549.89 | 6.0 | 75.0 | 7.0 | 4.0 | 7.0 | 6.5 | 75.0 | 8.0 | 19.0 | 18.0 | 1.5 | 10.0 |
| 1310.0 | 9.0 | 36.0 | 1190.0 | 104.0 | 63.6 | 577.36 | 6.0 | 75.0 | 7.0 | 5.0 | 7.1 | 6.5 | 75.0 | 8.0 | 19.0 | 19.5 | 1.5 | 9.8 |
| 1320.0 | 6.7 | 36.0 | 1204.0 | 105.22 | 61.6 | 584.43 | 6.0 | 75.0 | 7.0 | 6.0 | 5.55 | 6.5 | 75.0 | 8.0 | 19.0 | 21.25 | 2.6 | 8.7 |
| 1320.0 | 9.0 | 38.0 | 1210.0 | 105.74 | 58.6 | 587.348 | 6.5 | 75.0 | 8.0 | 3.95 | 7.15 | 6.5 | 75.0 | 8.0 | 19.0 | 16.75 | 3.1 | 10.3 |
| 1410.0 | 9.0 | 38.0 | 1290.0 | 112.71 | 63.8 | 627.307 | 6.0 | 75.0 | 7.0 | 5.0 | 7.1 | 6.5 | 75.0 | 8.0 | 19.0 | 19.5 | 1.5 | 9.8 |
| 1410.0 | 11.0 | 38.0 | 1290.0 | 112.71 | 63.8 | 627.307 | 6.0 | 75.0 | 7.0 | 5.0 | 8.1 | 6.5 | 75.0 | 8.0 | 19.0 | 19.5 | 3.5 | 11.4 |
| 1430.0 | 9.5 | 38.0 | 1298.0 | 113.41 | 69.8 | 631.304 | 6.0 | 75.0 | 7.0 | 4.2 | 7.5 | 6.5 | 75.0 | 8.0 | 19.0 | 17.25 | 3.2 | 10.1 |
| 1510.0 | 11.0 | 38.0 | 1380.0 | 120.55 | 68.9 | 672.274 | 6.0 | 75.0 | 7.0 | 6.0 | 8.35 | 6.5 | 75.0 | 8.0 | 19.0 | 20.75 | 3.5 | 11.1 |
| 1610.0 | 9.0 | 40.0 | 1490.0 | 117.18 | 63.6 | 723.177 | 6.5 | 75.0 | 8.0 | 4.55 | 7.15 | 7.0 | 75.0 | 9.0 | 20.0 | 22.1 | 3.1 | 10.4 |
| 1610.0 | 11.0 | 40.0 | 1490.0 | 117.18 | 63.6 | 723.177 | 6.5 | 75.0 | 8.0 | 4.55 | 8.4 | 7.0 | 75.0 | 9.0 | 20.0 | 16.0 | 3.5 | 11.6 |
| 1800.0 | 16.0 | 40.0 | 1620.0 | 127.38 | 93.8 | 788.114 | 7.0 | 75.0 | 9.0 | 6.8 | 12.65 | 9.5 | 75.0 | 10.0 | 35.0 | 6.0 | 13.2 | |
| 2015.0 | 18.0 | 44.0 | 1860.0 | 132.97 | 81.2 | 903.543 | 8.5 | 90.0 | 6.25 | 13.78 | 9.0 | 75.0 | 25.0 | 3.5 | 19.0 |
